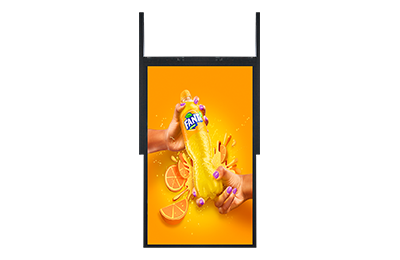

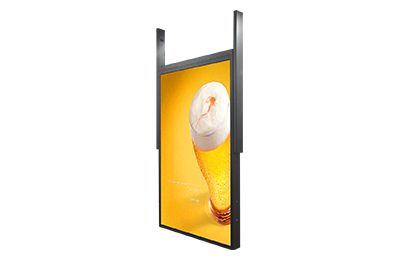

1. 55inch High Brightness Windows Digital Signage Display Screen
2. Double Sided. one is for indoor 700nits, one is for outdoor 2500nits
3. Build in Android RK3568, 2GB RAM and 16GB ROM.
4. Sun-Readable Supported. Suitable for any retailer, supermarket etc Applications
5. 1920X1080 Full HD Resolution, 7x24 Industrial Level working time
Model No. | KL43-DS | KL49-DS | KL55-DS | |
LCD panel | Size | 43" | 49" | 55" |
Technology | IPS,M+(RGBW) | IPS,M+(RGBW) | IPS,M+(RGBW) | |
Display ratio | 16:9 | 16:9 | 16:9 | |
Resolution | 1920*1080 | 1920*1080 | 1920*1080 | |
Resolution | 2500nits/700nits | 2500nits/700nits | 2500nits/700nits | |
Contrast ratio | 1200:1 | 1200:1 | 1200:1 | |
Viewing angle | 178/178 | 178/178 | 178/178 | |
treatment | Haze 3% | Haze 3% | Haze 3% | |
Lifespan | 30000Hrs | 30000Hrs | 30000Hrs | |
Working hours | 7*24Hrs | 7*24Hrs | 7*24Hrs | |
Display mode | Portrait | Portrait | Portrait | |
Mainboard | Specification | Android RK3568 Cortex-A17 Quad-core 2GB RAM ,16GB Flash Nand | ||
Interface | HDMI output , WIFI , RJ45 TF slot, USB*2 , DC 12v | |||
Metal case structure | Color | Black | Black | Black |
Bezel | 25mm/25mm | 25mm/25mm | 25mm/25mm | |
Outer case dimension | 1036.0*583.0*80.0mm | 1166.9*656.0*80.0mm | 1302.7*732.4*80.0mm | |
N.W | 32kg | 32kg | 42kg | |
Packing dimension | 1150*800*300mm | 1250*900*300mm | 1450*890*300mm | |
G.W | 32kg | 46kg | 54kg | |
Working environment | Working temperature | 0--50℃ | 0--50℃ | 0--50℃ |
Working humidity | 10%--85% | 10%--85% | 10%--85% | |
Power | Input voltage | 110-240V, 50/60Hz | 110-240V, 50/60Hz | 110-240V, 50/60Hz |
Max power consumption | 290W | 340W | 440W |
